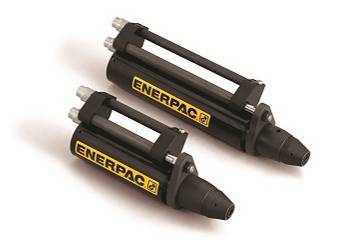

Hydraulic Jack:-

• Durable, field-proven designs, with “soft-grip” ergonomic handles reduce operator fatigue
• Single-acting PTJ models, with spring-seating and optional power-seating are equipped with the new Enerpac RC Post-tensioning cylinders with a 254 mm stroke, ideal for slab-on-grade applications
• Double-acting DA models have an 216 mm stroke and are machined from a steel billet; feature standard powerseating and “gun-drilled” internal hydraulic passages
• All jacks have a standard 3" nose assembly. Longer nose assemblies are available as accessories for all models
• A full line of grippers is available to tension common strand diameters
• Complete offering of Enerpac parts and soft kits allow quick and easy service.
•

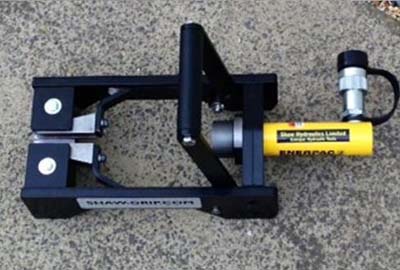

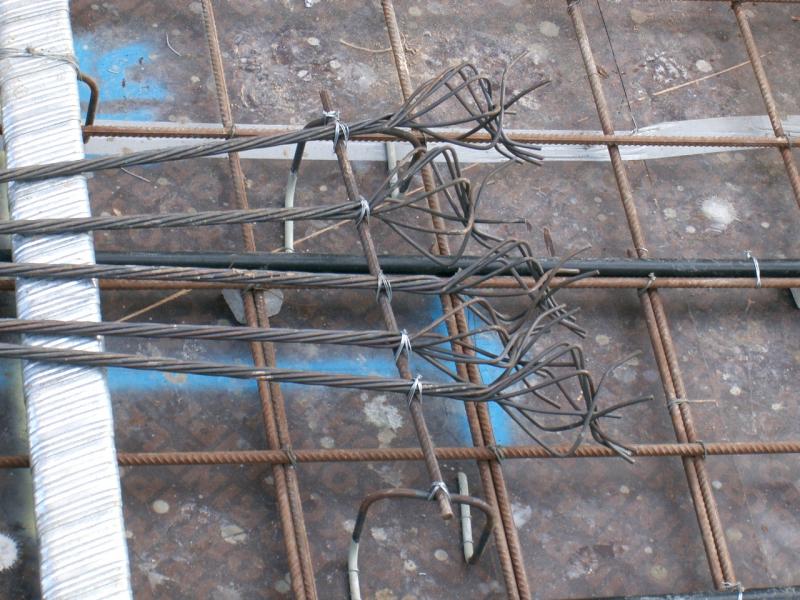

Onion Jack:-

The Onion Jack creates an anchor point for prestressing cables.The unit forms an onion shape to the end of the cable by spreading and separating the individual wires thus forming the onion shape on the cable ends. A heavy duty machine, yet still lightweight and portable. Can also be used with hand operated pumps. By using the machine, you eliminate the need for anchor plates or barrel/wedges

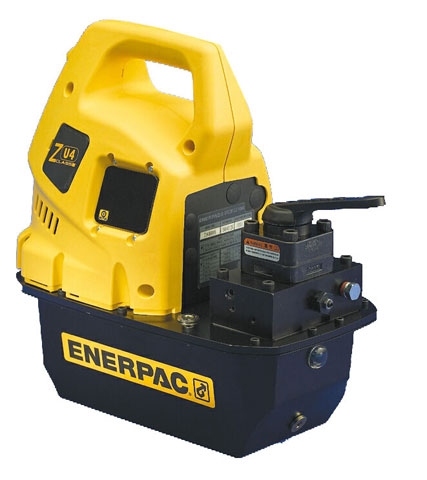

Hydraulic Pumps:-

Enerpac’s wide range of electric hydraulic pumps provide durability, high performance and economy. Using the latest metallurgical, bearing and seal technologies to produce a hydraulic electric pump whose features and benefits far surpass the high pressure electric pumps that are available today. The Z-Class hydraulic power units are the market leader in industrial hydraulic pump technology.

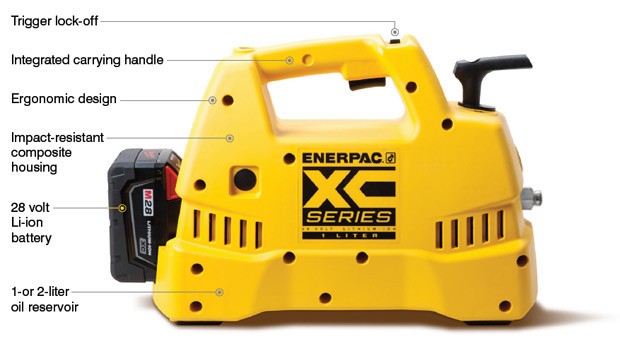

 Performance of a Powered Pump. Portability of a Hand Pump.

• The cordless hydraulic pump features a lightweight design with integrated handle and carrying strap for portability
• Bladder reservoir prevents contamination and allows pump usage in any position
• Powerful ½ horsepower motor and 28 volt Lithium-Ion battery deliver exceptional speed and run time
• High-strength fiberglass reinforced composite shroud for superior durability in demanding job site environments
• Cordless hydraulic pump technology eliminates tripping hazards found in other powered pumps.

Grouting Machines:-

The ChemGrout CG-550B bentonite well grouter series are skid mounted units. A large 45-gallon (170 liters) baffled mix tank is equipped with an efficient paddle mixer that blends bentonite and polymer/bentonites quickly and completely.  These units feature a Bowie gear pump that gently pumps the polymer bentonites, allowing the critical time needed to place the material within the cavity.  The Bowie pump is also used to pump the water into the mix tank, an automatic check valve design simplifies operations and ensures reliable batch making.

The standard self-contained models are powered by a 8 HP gasoline engine, optional 13 HP engine available.  The pump and mixer are driven by dependable and powerful hydraulic motors.  Models are also designed for external hydraulic power sources to meet your needs.

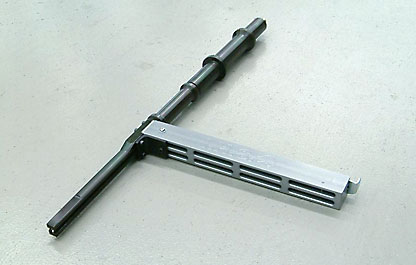

Staple Machine:-

Is used for the affixing of strand chairs in the prestressing industry. This light-weight, manually operated Staple Machine can be used on sites where an air supply is not available.
